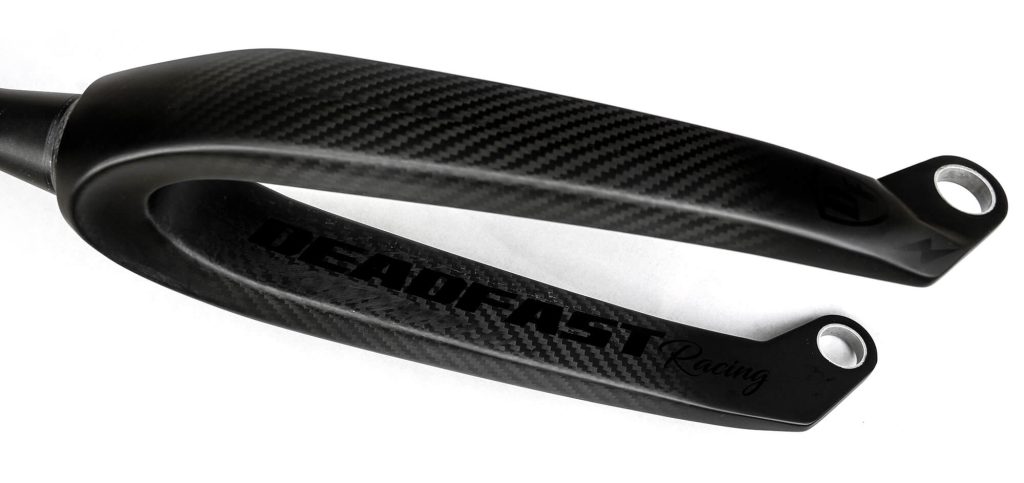

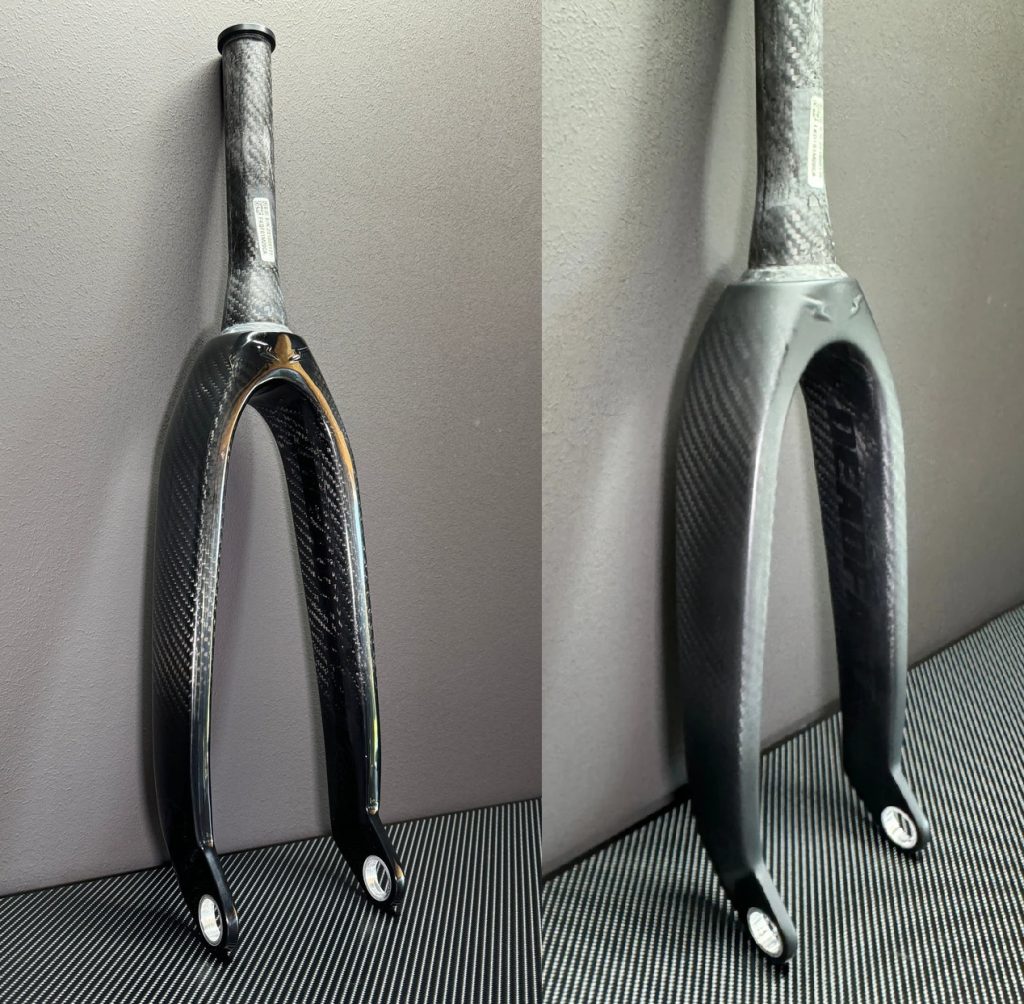

Stryker Carbon Forks 20″ Tapered 1 1/8 – 1 1/2
When you’re on the track you need a high performing connection between your frame and front wheel, Our Stryker Forks Deliver on this with unmatched performance.
Engineered for maximum strength and responsiveness with ALL the upgrades you will ever need!
Designed to be stronger than any other carbon BMX race fork, with specific detail built into the high load points of these forks from the steer tube to the bearing race through to the dropouts.
Impacted tested way beyond the standards with outstanding results.
All Our forks feature a built-in 45° bearing race so there is no need for a headset crown race, an internally threaded steer tube with a hassle free Hollow threaded top cap featuring a 6mm hex & 3/8 drive tool options, Aero fork legs with Rear Air Dam and many more.
Full Carbon Specs below
The perfect combination of Toray T700+T800 High Mod Carbon Fiber construction
Specially designed Aero Fork legs featuring a rear Air Dam
Steerer tube – For maximum strength and security a full 1-piece Carbon Fiber fork. No glue, no bonding, the entire fork is a single piece of high modulus, high-impact carbon fibre
The steer tube will never slip, twist or pull. As the Steer tube, the Legs, and the dropouts are of the same singular piece of hollow carbon fibre
Steer tube Internal locking system (integrated 18×1.5mm thread with 7075-T6 Alloy M18 Top Cap included)
172mm steerer tube length
Steer tube Built in bearing race
31mm drop-out offset
20mm dropouts (20mm to come with 10mm adapters)
Available Matte or Gloss 3K weave options
Weight 430 +/- 10 grams
Carbon with Alloy Steer tube Specs below
The perfect combination of Toray T700+T800 High Mod Carbon Fiber construction
Specially designed Aero Fork legs featuring a rear Air Dam
6mm thick 7075-T6 steerer tube (1pc aluminium steerer tube and crown, Alloy Steer tube is bonded and keyed into the carbon crown)
Steer tube Internal locking system (integrated 18×1.5mm thread with 7075-T6 Alloy M18 Top Cap included)
172mm steerer tube length
Steer tube Built in bearing race
31mm drop-out offset
6061 T6 Alloy Reinforced 20mm Drop out bonded and keys into the Carbon legs
20mm dropouts (20mm to come with 10mm adapters)
Available Matte or Gloss 3K weave options
Weight 540 +/- 10 grams

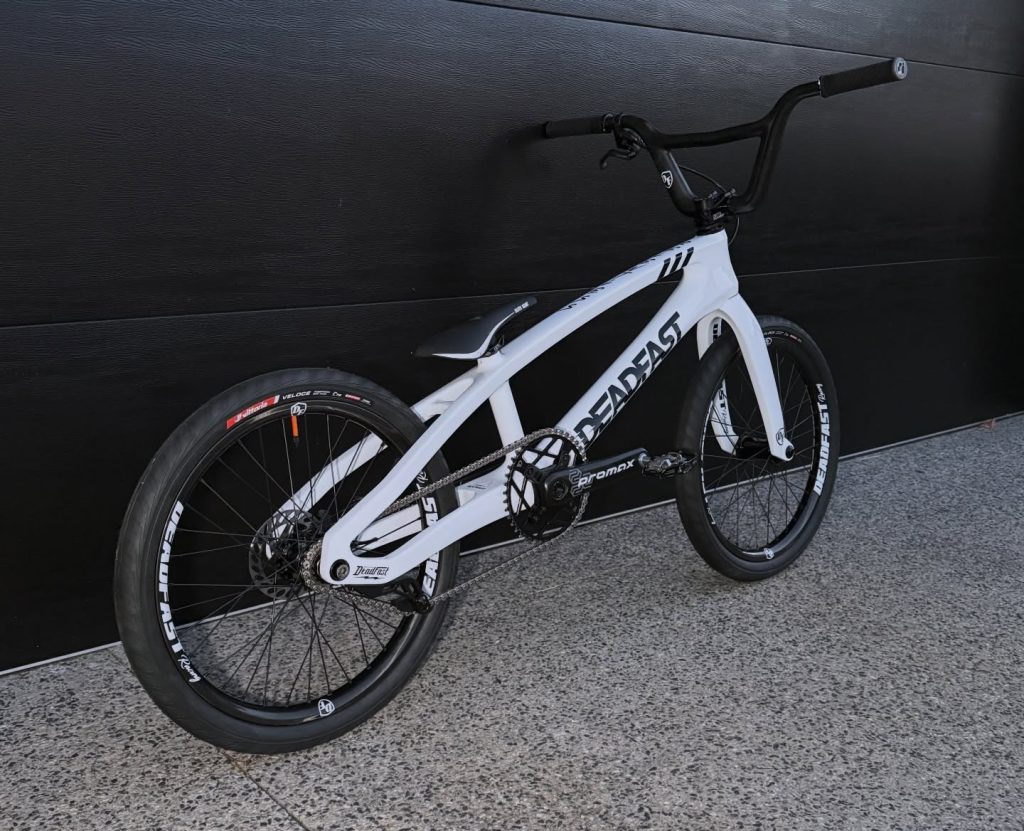

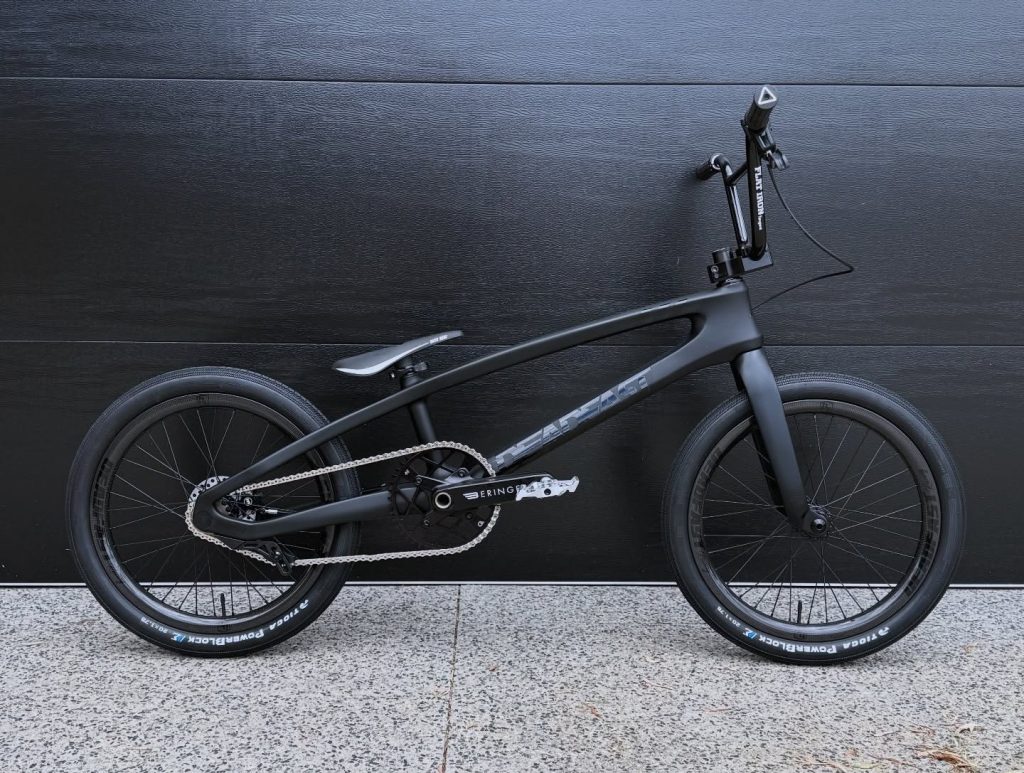

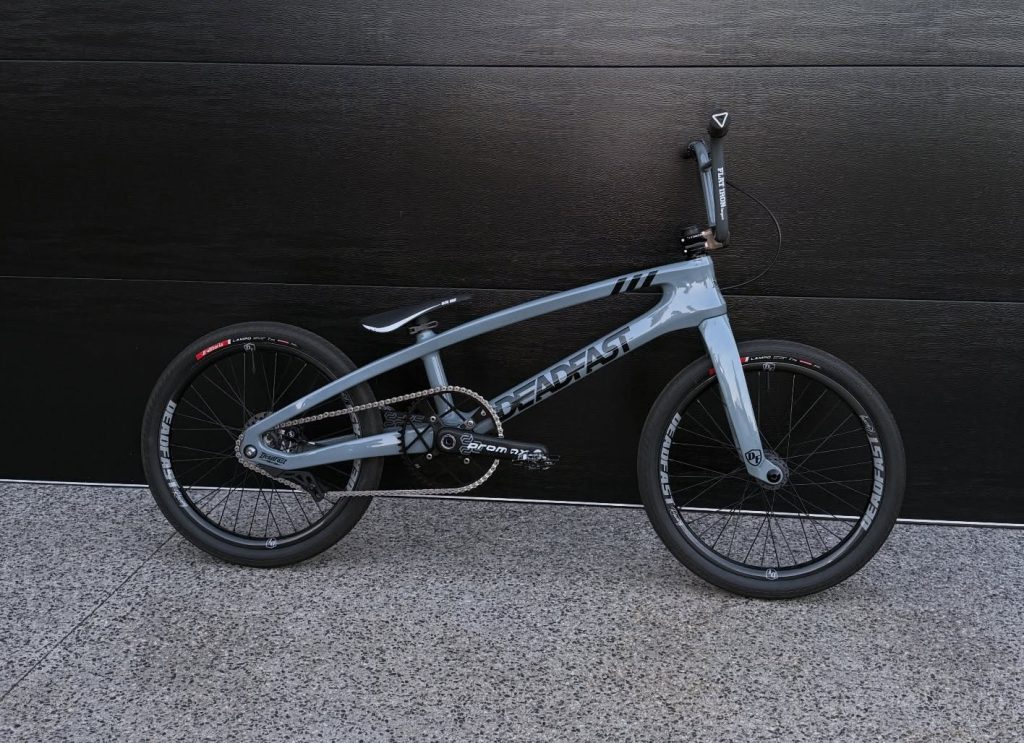

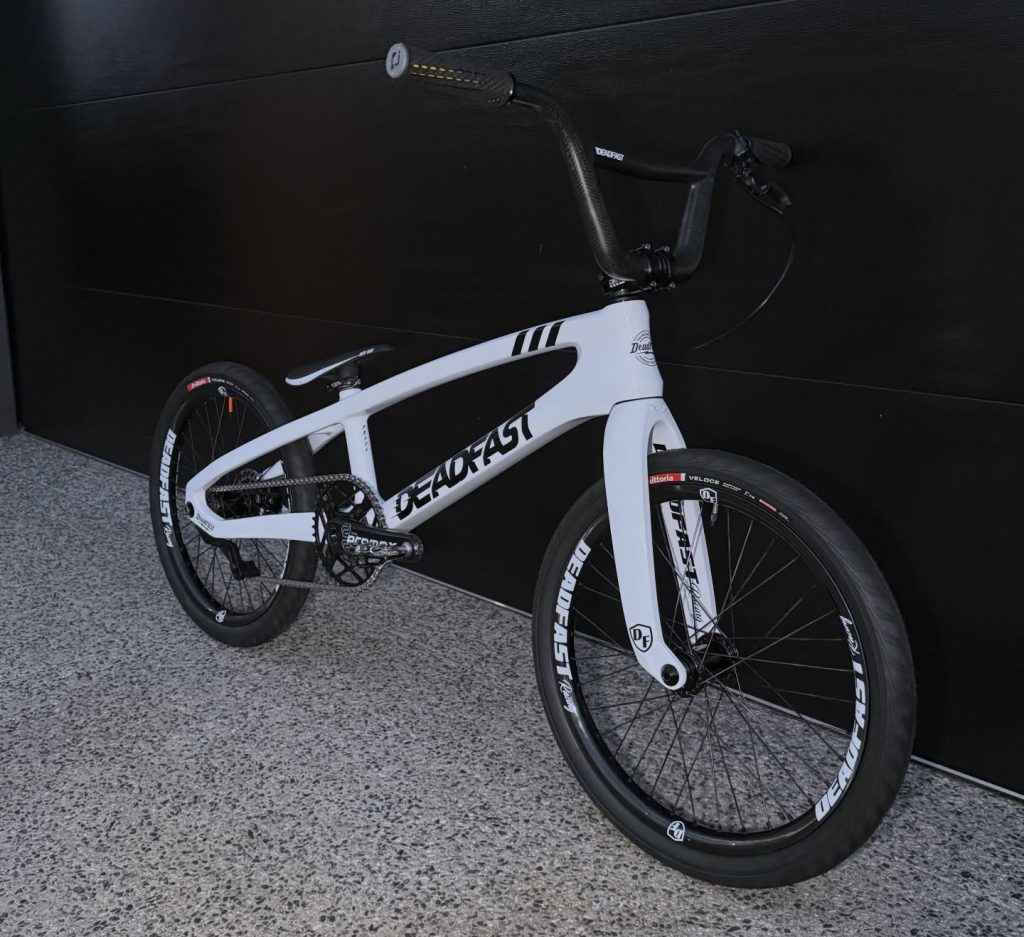

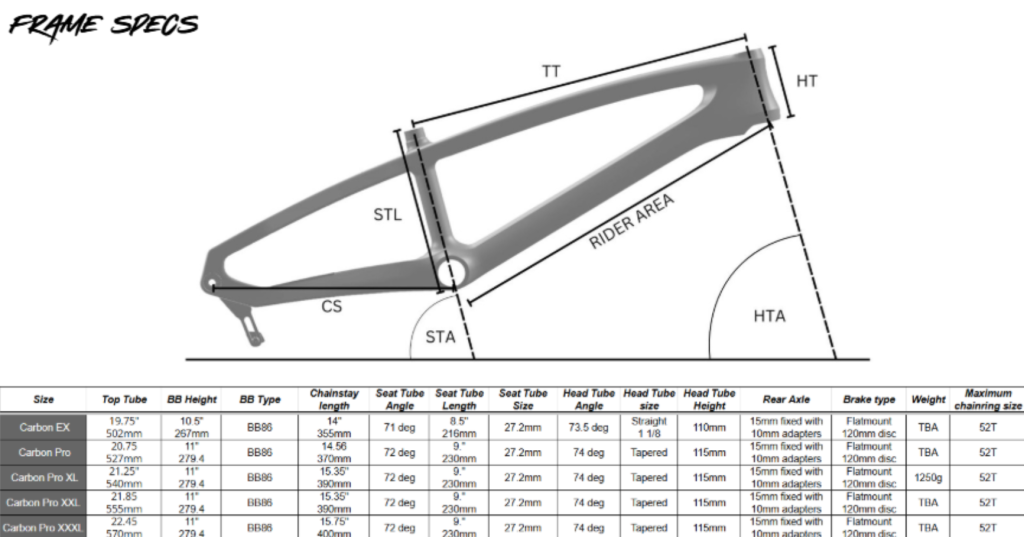

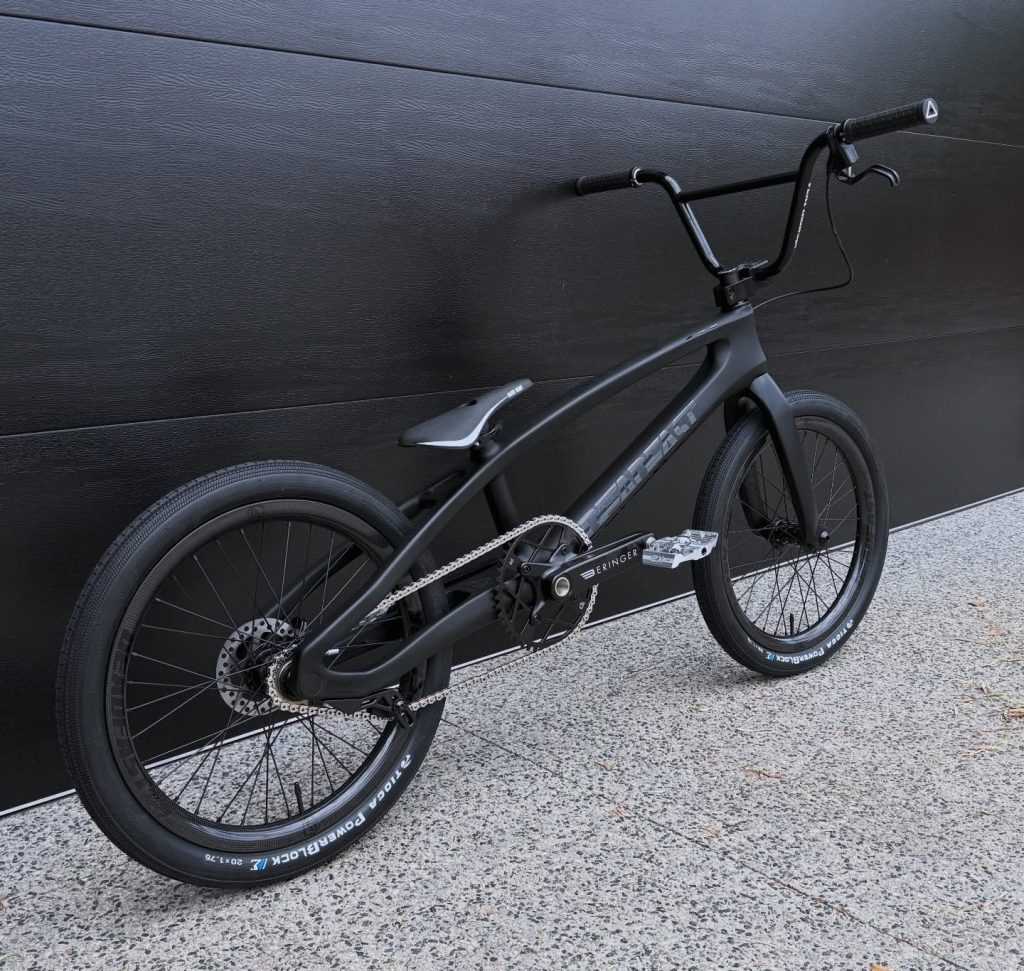

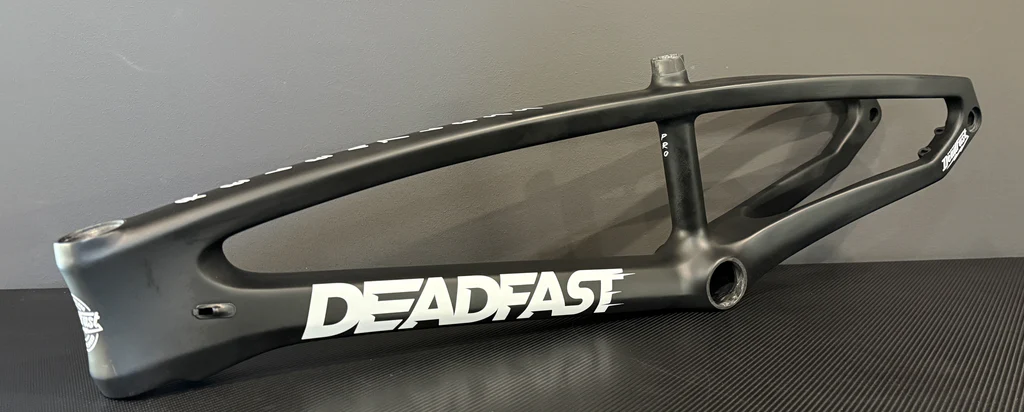

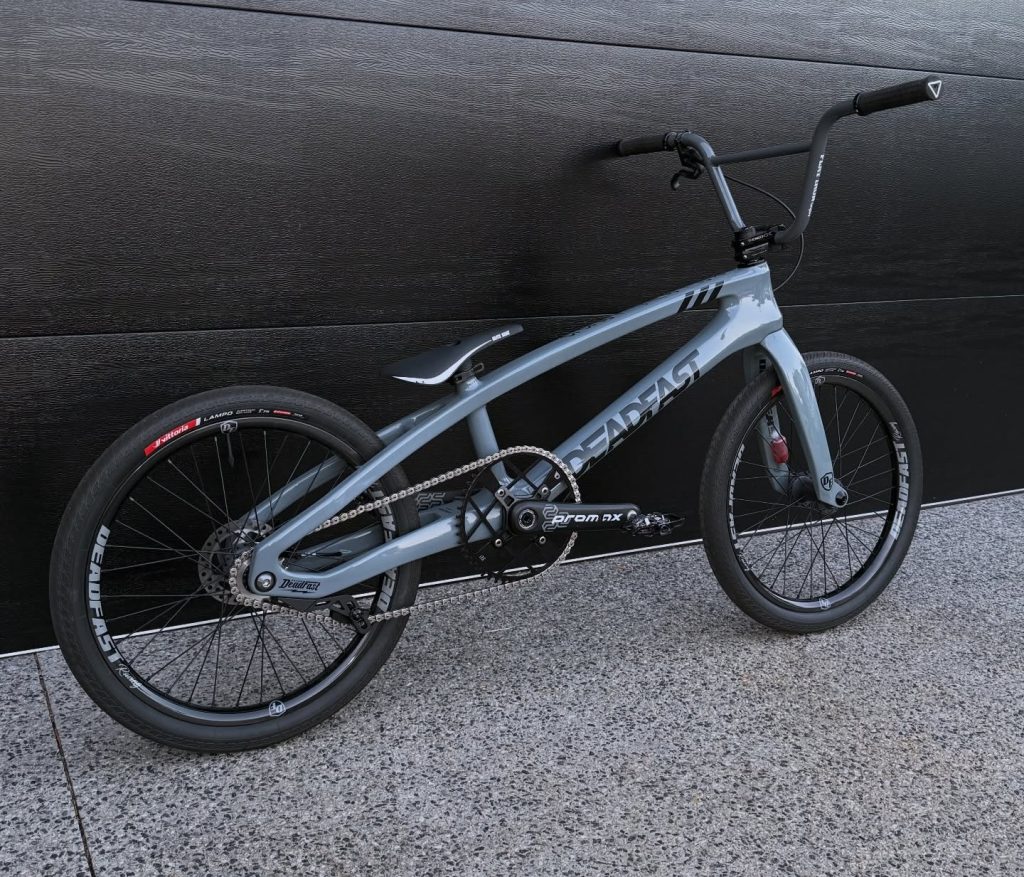

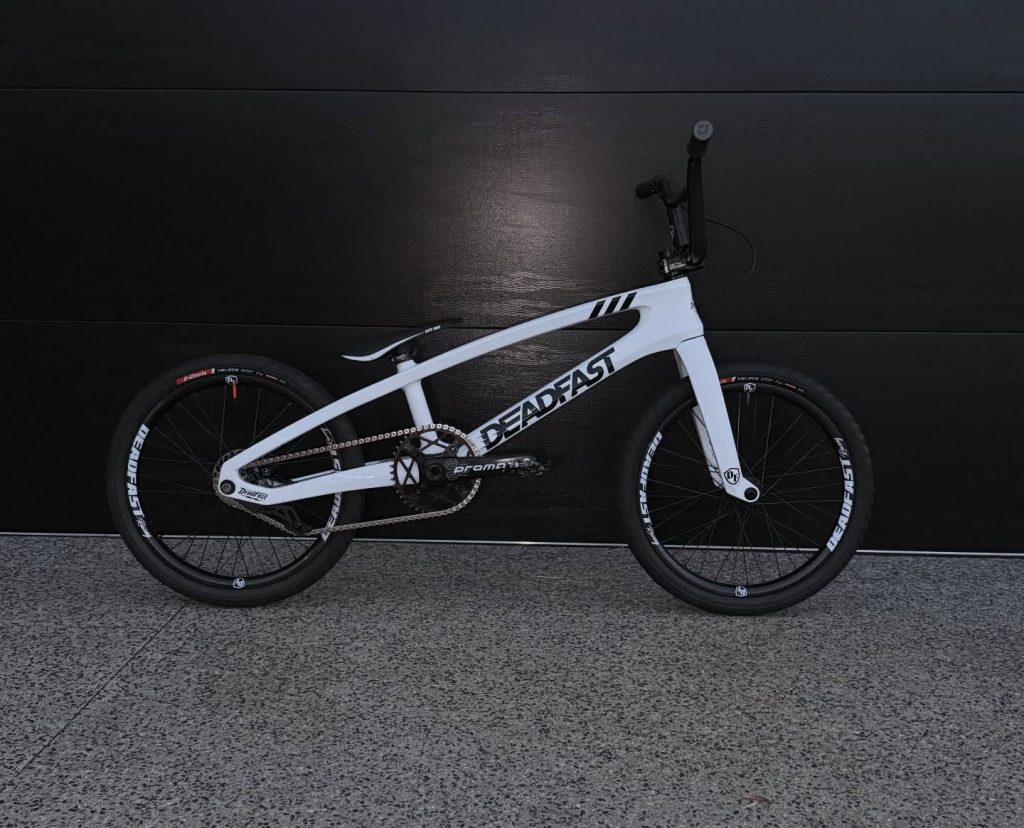

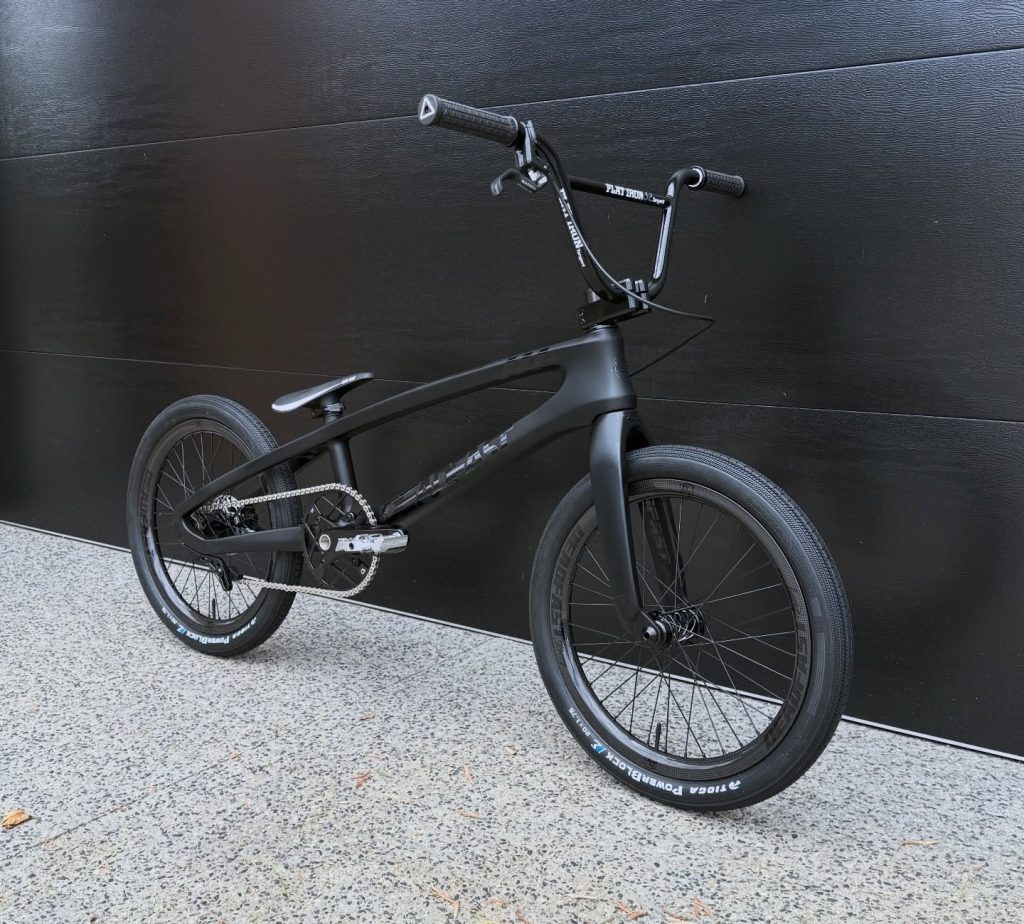

DeadFast Carbon Race Frame “Relentless”
Engineered to be the Perfect combination of Strength, Stiffness and a Responsiveness in a lightweight package.
To help achieve this we used an oversized Bottom bracket to chains stay “power box” to reduce chain stay flex. The top tube blends all the way to the seat stays in one smooth Arc to reduce angle changes and help eliminate stress raisers.
Our most unique feature is the front end “Aero Gusset” designed to blend seamlessly with our carbon forks. This not only reduces drag but stiffens up the front triangle without adding unnecessary bulk.
Additional features include
Fixed chain stays with 15mm axle included.
Bolt on chain tensioner with slider
10mm adapter kit to use 10mm female bolt hubs
Internal brake cable routing
Press fit BB86 (Currently pro is BB386)
Tapered 1 1/8 - 1 1/2 head tube
27.2mm seat post (needs 31.8mm seat clamp)
120mm flat mount disc specificCurrently Available in Pro, Pro XL and Pro XXL sizes

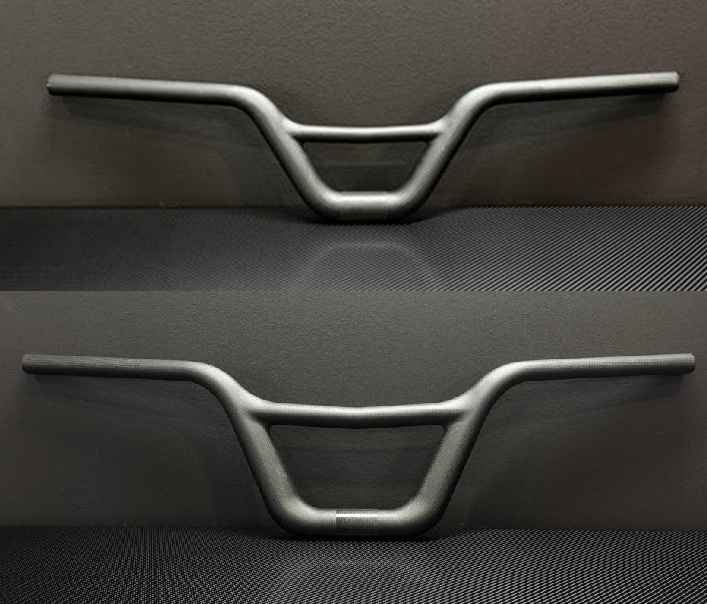

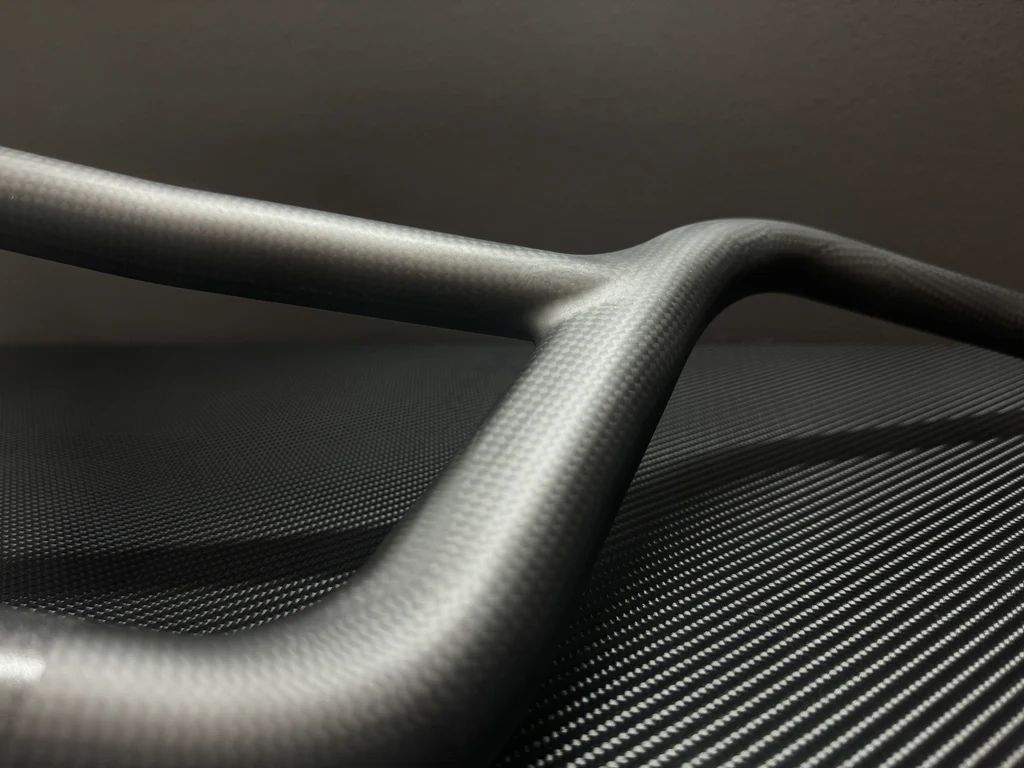

DeadFast Carbon Race Bar
Size
Our oversized Carbon handlebars are built to be Stiff, Strong and Badass!
Available in 5″ designed for junior riders, 7″ & 8″ are suitable for pro riders.
Featuring an oversized 31.8mm stem clamp area wide enough for any stem that perfectly tapers to a standard 22.2mm grip and brake lever area with an oversized cross bar to match.
Made of High Mod Carbon and engineered to exceed all expectations these will give you unmatched levels of stiffness and rider feedback to get you ahead of the pack.
No rider weight limit for 7 & 8″ bars *
Bolt torque specs – 10-12nm**
Specs Below
5″ 31.8mm Junior Carbon Handlebar
Width – 680mm/26.75″
Back Sweep – 6 Deg
Up Sweep – 3 Deg
Weight – 275grams
Rider weight limit 45kg or 100lbs
7″ 31.8mm Carbon Handlebar
Width – 720mm/28.25″
Back Sweep – 6 Deg
Up Sweep – 3 Deg
Weight – 345grams
8″ 31.8mm Carbon Handlebar
Width – 720mm/28.25″
Back Sweep – 6 Deg
Up Sweep – 3 Deg
Weight – 365grams
* These handlebars are designed for racing, and they should only be used for this purpose on the track. Our bars have been tested to exceed all international standards but under extreme use or miss use they may break just like any Alloy or Cromo Bar.
** All torque specs must be used for proper operation and to avoid damage. Warranty is for material and manufacturing defects only. Not against use and abuse.
